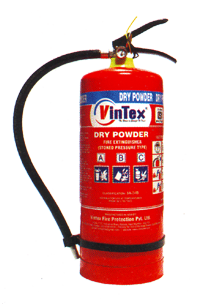

These fire extinguisher are simple method of operation and rapid fire knock down capability. They are suitable for tackling fires involving freely burning materials, petrol & oils, gas & electrical equipment. Available in Portable and Trolley Mounted type Fire extinguishers
Features:
1.Mono-Ammonium Phosphate(MAP) based dry chemical agent. Capable of fighting class A,B,C & E Fires CE Certified
2.BIS Approved
3.Controlled Discharge
4.Brass nickel plated head valve with simple squeeze operation
5.Unique gauge testing system (UGTS)
6.Portable type Fire Extinguishers available capacities 1, 2, 4, 6 & 9 Kgs as per IS (15683)
7.Trolley Mounting type Fire Extinguisher available capacities 25, 50, 75 Kgs as per IS (10658)
MODEL |
VFPA 1 |
VFPA 2 |
VFPA 4 |
VFPA 6 |
VFPA 9 |
capacity |
1KG |
2KGS |
4KGS |
6KGS |
9kgs |
ISS No |
15683 |
15683 |
15683 |
15683 |
15683 |
Fire rating |
1A-8B, C |
1A-8B, C |
1A-13B,C |
2A-21B,C |
3A-34B,C |
Operating temperature(deg celcius) |
-20 to +50 |
-20 to -55 |
-20 to +55 |
-20 to 55 |
-20 to 55 |
Min.jet length(in mtrs) |
2 |
2 |
2 |
2 |
2 |
Discharge % min |
85% |
85% |
85% |
85% |
85% |
Discharge time min |
8 sec |
13 sec |
13 sec |
13 sec |
13 sec |
Charge pressure(cm (sqr)) |
15 kgf/cm |
15 kgf/cm |
15 kgf/cm |
15 kgf/cm |
15 kgf/cm |
Test presure |
35 kgf/cm |
25 kgf/cm |
35 kgf/cm |
35 kgf/cm |
35 kgf/cm |
Operating valves |
Squeeze grip type |
Squeeze grip type |
Squeeze grip type |
Squeeze grip type |
Squeeze grip type |
Extinguisher media |
Dry Powder 14609 |
Dry Powder 14609 |
Dry Powder 14609 |
Dry Powder 14609 |
Dry Powder 14609 |
Expellant |
Dry nitrogen |
Dry nitrogen |
Dry nitrogen |
Dry nitrogen |
Dry nitrogen |
Anti corrosive treatments |
Phosphating(7 tanks) |
Phosphating(7 tanks) |
Phosphating(7 tanks) |
Phosphating(7 tanks) |
Phosphating(7 tanks) |
Painting |
Epoxy polyester powder coating |
Epoxy polyester powder coating |
Epoxy polyester powder coating |
Epoxy polyester powder coating |
Epoxy polyester powder coating |

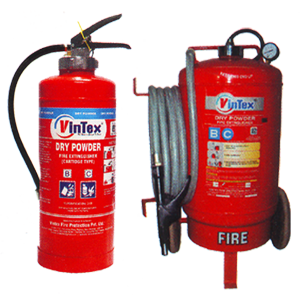

These fire extinguishers contain Sodium Bi-Carbonate based Dry Powder as per IS 4308 or Mono Ammonium Phosphate based Powder. These are useful to fires involving materials like oils, fats, solvents, gases, paint, varnish, electrical wiring and live machinery.
Features:
1.Sodium Bi-Carbonate based dry powder or Mono-Ammonium Phosphate(MAP) based dry chemical agent. Capable of fighting class B,C Fires
2.CE Certified
3.BIS Approved
4.Controlled Discharge
5.Brass nickel plated head valve with simple squeeze operation
Unique gauge testing system (UGTS)
6.Portable type Fire Extinguishers available capacities 4, 6 & 9 Kgs as per IS (15683)
7.Trolley Mounting type Fire Extinguisher available capacities 25, 50, 75 Kgs as per IS (10658)
MODEL |
VFPD 4 |
VFPD 6 |
VFPD 9 |
VFPD 25 |
VFPD 50 |
VFPD 75 |
Capacity |
4KGS |
6KGS |
9kgs |
25kgs |
50kgs |
75kgs |
ISS No |
15683 |
15683 |
15683 |
10658 |
10658 |
10658 |
Fire rating |
21B,C |
34B,C |
34B,C |
- |
- |
- |
Operating temperature(deg celcius) |
-20 to +55 |
-20 to +55 |
-20 to +55 |
- |
- |
- |
Min.jet length(in mtrs) |
2 |
2 |
2 |
6 |
8 |
10 |
Discharge % min |
85% |
85% |
85% |
85% |
85% |
85% |
Discharge time min |
13 sec |
13 sec |
13 sec |
25sec |
40sec |
50sec |
Charge pressure(cm (sqr)) |
- |
- |
- |
- |
- |
- |
Test presure |
35 kgf/cm |
35 kgf/cm |
35 kgf/cm |
30 kgf/cm |
30 kgf/cm |
30 kgf/cm |
Operating valves |
Squeeze grip type |
Squeeze grip type |
Squeeze grip type |
Conventional |
Conventional |
Conventional |
Extinguisher media |
Dry powder 4308/14609 |
Dry powder 4308/14609 |
Dry powder 4308/14609 |
Dry powder 4308/14609 |
Dry powder 4308/14609 |
Dry powder 4308/14609 |
Expellant |
CO2 |
CO2 |
CO2 |
CO2 |
CO2 |
CO2 |
Anti corrosive treatments |
Phosphating(7 tanks) |
Phosphating(7 tanks) |
Phosphating(7 tanks) |
Phosphating(7 tanks) |
Phosphating(7 tanks) |
Phosphating(7 tanks) |
Painting |
Epoxy polyester powder coating |
Epoxy polyester powder coating |
Epoxy polyester powder coating |
Epoxy polyester powder coating |
Epoxy polyester powder coating |
Epoxy polyester powder coating |
These type of Fire Extinguishers are useful to fires involving materials like paper, cloth, wood etc.,
Features:
1.BIS Approved
2.CE Certified
3.Spay Nozzle to provide high fire rating
4.Controlled Discharge Water, liquid agent recommended only for fighting class A fire
5.Brass nickel plated head valve with simple squeeze operation
6.Unique gauge testing system (UGTS)
7.Portable type Fire Extinguishers available in both Stored Pressure and Cartridge with capacities 6 & 9 Ltrs as per IS (15683).
8.Trolley Mounting type Fire Extinguisher available with Cartridge and Outside Cylinder with capacities 50Ltr as per IS (13385).
Stored Pressure
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cartridge Type
|
These type of Fire Extinguishers are useful to fires involving volatile liquids and freely burning materials such as paper, cloth, wood etc.,
Features:
1.AFFF aqueous film forming foam agent capable of fighting class A&B fire
2.BIS Approved
3.CE Certified
4.Spay Nozzle to provide high fire rating
5.Controlled Discharge
6.Brass nickel plated head valve with simple squeeze operation
7.Unique gauge testing system (UGTS)
8.Portable type Fire Extinguishers available in both Stored Pressure and Cartridge with capacities 6 & 9 Ltrs as per IS (15683).
9.Trolley Mounting type Fire Extinguisher available with Cartridge and Outside Cylinder with capacities 50Ltr as per IS (13386).
Stored Pressure
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cartridge Type
|

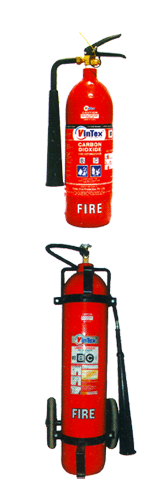

These Fire Extinguishers are for fires involving materials like inflammable liquids, gaseous and electrical fires etc,
Features:
1.Carbon Dioxide, gases agent, colorless, odorless, non-Toxic provide rapid knock down of industrial fire. Capable of fighting Class B,C fires.
2.BIS Approved
3.CE Certified
4.Controlled Discharge
5.Brass head valve with simple squeeze operations provided with pressure relief disc.
6.Non conductive agent for electrical use without risk to operator.
7.CO2 gas disappears quickly leaving no residue
8.Swivel horn with no freeze burn, with greater directional control of CO2 discharge through horn rotation feature.
9.Portable type Fire Extinguishers available in both Stored Pressure and Cartridge with capacities 2,3,4.5 Kgs as per IS (15683).
10.Trolley Mounting type Fire Extinguisher available with capacities 6.5, 9, 22.5 Kg as per IS (2878).
MODEL |
VFP Co2 2 |
VFP Co2 3 |
VFP Co2 4.5 |
VFP Co2 6.5 |
VFP Co2 9 |
VFPD 22.5 |
Capacity |
2KGS |
3KGS |
4.5kgs |
6.5kgs |
9kgs |
22.5kgs |
ISS No |
15683 |
15683 |
15683 |
2878 |
2878 |
2878 |
Fire rating |
8B,C |
13B,C |
21B,C |
- |
- |
- |
Operating temperature(deg celcius) |
-30 to +55 |
-30 to +55 |
-30 to +55 |
- |
- |
- |
Min.jet length(in mtrs) |
1 |
1 |
2 |
2 |
2 |
2 |
Discharge % min |
95% |
95% |
95% |
95% |
95% |
95% |
Discharge time min |
8 sec |
8 sec |
8 sec |
10-20sec |
15-36sec |
20-60sec |
Cylinder |
Seamless IS:7285 |
Seamless IS:7285 |
Seamless IS:7285 |
Seamless IS:7285 |
Seamless IS:7285 |
Seamless IS:7285 |
Test presure(per cm sqr) |
250 kgf |
250 kgf |
250 kgf |
250 kgf |
250 kgf |
250 kgf |
Operating valves |
Squeeze grip type |
Squeeze grip type |
Squeeze grip type |
Squeeze grip /Wheeel type |
Squeeze grip /Wheeel type |
Squeeze grip /Wheeel type |
Extinguisher media |
Co2 Gas IS:15222 |
Co2 Gas IS:15222 |
Co2 Gas IS:15222 |
Co2 Gas IS:15222 |
Co2 Gas IS:15222 |
Co2 Gas IS:15222 |
Expellant |
Self |
Self |
Self |
Self |
Self |
Self |
Operation position |
Up Right |
Up Right |
Up Right |
- |
- |
- |
Painting |
Enamel Paint IS:5 Shade 536/537 |
Enamel Paint IS:5 Shade 536/537 |
Enamel Paint IS:5 Shade 536/537 |
Enamel Paint IS:5 Shade 536/537 |
Enamel Paint IS:5 Shade 536/537 |
Enamel Paint IS:5 Shade 536/537 |
Clean Agent is a non corrosive, electrically non conductive and free of residue. It is ideally suited for protecting high valve equipment.
Features:
1.HFC or HCFC Gas based extinguishing agent capable of fighting class A,B,C & Electrical fire.
2.BIS Approved
3.CE Certified
4.High performance extinguishing agent environmental friendly
5.Clean agent is an electrically non conductive & low in toxicity
6.Controlled Discharge
7.Brass nickel plated head valve with simple squeeze operation.
8.Non conductive agent for electrical use without risk to operator.
9.Unique gauge testing system (UGTS)
10.Fire Extinguishers available with capacities 1, 2, 4 &6 Kgs as per IS (15683).
MODEL |
VFP CA 1 |
VFP CA 2 |
VFP CA 4 |
VFP CA 6 |
capacity |
1KGS |
2KGS |
4KGS |
6KGS |
ISS No |
15683 |
15683 |
15683 |
15683 |
Fire rating |
8B |
1A-8B |
1A-13B |
2A-21B |
Operating temperature(deg celcius) |
-20 to +55 |
-20 to -55 |
-20 to +55 |
-20 to 55 |
Min.jet length(in mtrs) |
2 |
2 |
2 |
2 |
Discharge % min |
95% |
95% |
95% |
95% |
Discharge time min |
8 sec |
13 sec |
13 sec |
13 sec |
Charge pressure(cm (sqr)) |
15 kgf/cm |
15 kgf/cm |
15 kgf/cm |
15 kgf/cm |
Test presure |
35 kgf/cm |
25 kgf/cm |
35 kgf/cm |
35 kgf/cm |
Operating valves |
Squeeze griptype |
Squeeze grip type |
Squeeze grip type |
Squeeze grip type |
Extinguisher media |
NAF PIV |
NAF PIV |
NAF PIV |
NAF PIV |
Expellant |
Dry nitrogen |
Dry nitrogen |
Dry nitrogen |
Dry nitrogen |
Anti corrosive treatments |
Phosphating(7 tanks) |
Phosphating(7 tanks) |
Phosphating(7 tanks) |
Phosphating(7 tanks) |
Painting |
Epoxy polyester powder coating |
Epoxy polyester powder coating |
Epoxy polyester powder coating |
Epoxy polyester powder coating |
These specialized fire extinguishers are suitable for unmanned areas. They are operated automatically by a special heat sensitive quadrazoid bulb. These are also useful in areas beyond the reach of normal fire extinguishers
Features:
1.These Fire Extinguisher is suitable for Class A,B,C fires.
2.It is portable unit, easy to install and re-locate
3.Automatic and reliable security round the clock
4.Provides security in case of emergencies and power failure without powder backup
5.Available in both Clean Agent & Powder with capacities 2,5,10 & 15Kgs.
MODEL |
VFP MA 2 |
VFP MA 5 |
VFP MA 10 |
VFP MA 15 |
capacity |
2KGS |
5KGS |
10KGS |
15KGS |
Area Protection in m2 |
1-1.5 |
3.5-4 |
7-8 |
8-10 |
Operating time |
8-10 sec |
10-15 sec |
15-20 sec |
18-23 sec |
Working pressure (per cm sqr) |
7-15 Kgf |
7-15 Kgf |
7-15 Kgf |
7-15 Kgf |
Volume Protection(meter cube) |
3 |
8 |
15 |
20 |
Hanging vertically above risk |
1.5m |
1.5-2m |
1.75-2.2m |
2-3m |
Propellen |
Nitrogen |
Nitrogen |
Nitrogen |
Nitrogen |
